Efficiently Handle Heavy Loads with 1800mm Fork Length Heavy Lift Forklift and Side Shift Capability

Efficiently Handle Heavy Loads with 1800mm Fork Length Heavy Lift Forklift and Side Shift Capability
Efficiently Handle Heavy Loads with 1800mm Fork Length Heavy Lift Forklift and Side Shift Capability

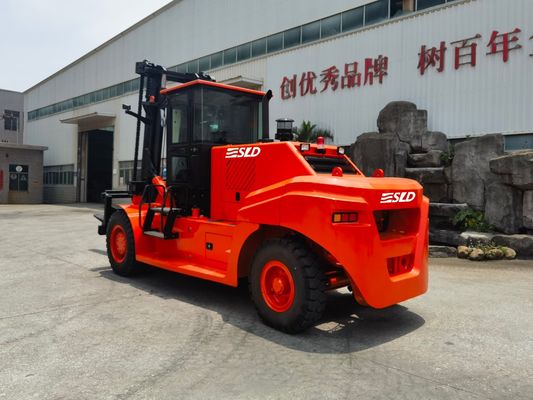

Grande immagine :  Efficiently Handle Heavy Loads with 1800mm Fork Length Heavy Lift Forklift and Side Shift Capability

Dettagli:
Place of Origin: China
Marca: SLD
Certificazione: ISO, CE
Termini di pagamento e spedizione:
Minimum Order Quantity: 1 unit
Prezzo: negoziabile
Packaging Details: 40FR containers
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100 units per month
Descrizione di prodotto dettagliata
OEM: Personalizzato Colore: Orange Red, su misura.
Lunghezza forcella: 1800mm Velocità: 0-20 Km/h
Centro di carico: 600 mm Motore: Yuchai o cummini
Altezza di elevazione dell'albero: 3000 mm Tipo di sterzo: Ruota anteriore o posteriore
Evidenziare:

1800mm fork length heavy lift forklift

,

heavy lift forklift with side shift

,

heavy duty forklift for heavy loads

Product Overview The Heavy Lift Forklift is a robust and efficient machine designed for heavy-duty lifting and transporting of materials. It boasts a fork length of 1800mm, providing ample space for large and bulky items, making it versatile for various industries. Equipped with a side shift capability, it allows for precise positioning of materials, enhancing operational efficiency.
Key Features
  • Impressive Lifting Capacity: Capable of handling heavy loads with ease.
  • Side Shift Function: Enables precise alignment of forks with pallets or loads, improving efficiency in tight spaces.
  • Durable Construction: Built to withstand the rigors of heavy-duty tasks.
  • Customizable Options: Available with different engine types and customizable colors to meet specific needs.
Technical Specifications
  • Rated Load: Up to 15000kgs
  • Mast Lifting Height: 3000mm
  • Transmission: Hydraulic, ensuring smooth and efficient movement
  • Speed: 0-20 Km/h
  • Tilt Angle: 45-90 degrees
  • Fork Length: 1800mm
  • Engine: Yuchai or CUMMINS
Applications Ideal for industrial warehouses and construction sites, where it can efficiently lift and transport heavy materials such as pallets, containers, machinery, steel beams, pipes, and concrete blocks.

Technical Parameters



Parameters: Vehicle configuration   FD150
Performance Rated load   15000
  Load center   600
  Mast tilt angle (front/rear) º 6/12
  Overall dimensions Length mm 6635
    Width mm 2230
    Height mm 3050
    Mast lifting height mm 3000
  Fork size (L*W*H) mm 1800X200X90
  Min. turning radius mm 4800
  Max. travel speed (with load) Km/h 22
  Lifting speed (with load) mm/s 220
  Gradeability (with load) % 20
  Weight Kg 18000
Tyre Front   4X12.00-20/20PR
  Rear   2X12.00-20/18PR
  Wheel tread Front mm 1740
    Rear mm 1900
  Wheelbase mm 3300
  Min. ground clearance mm 270
Engine Model   YC6J175-T302
  Rated power KW 129
  Max. torque N.m 710

Customization and Delivery
  • Customization: Options include side shift, fork positioner, and color customization.
  • Place of Origin: China
  • Certification: ISO, CE
  • Minimum Order Quantity: 1 unit
  • Packaging Details: 40FR containers
  • Delivery Time: 30 working days
  • Payment Terms: L/C, T/T
  • Supply Ability: 100 units per month
Why Choose Our Heavy Lift Forklift?
  • High-Quality Performance: Ensures reliable and efficient operation.
  • Durability: Built to last, reducing downtime and maintenance costs.
  • Versatility: Suitable for a wide range of heavy-duty applications.
  • Safety: Bright color and advanced features reduce the risk of accidents.
